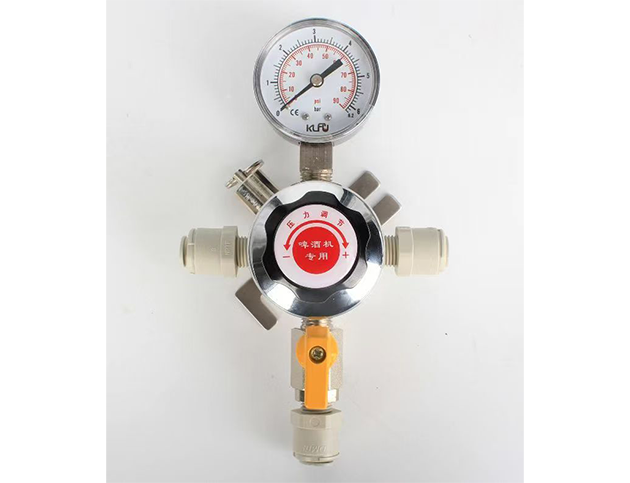

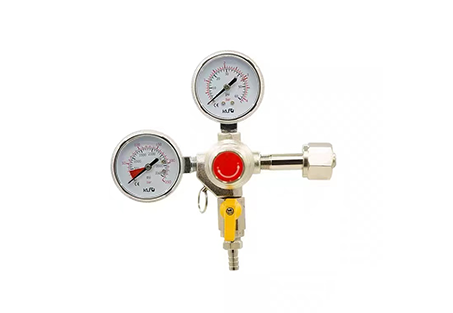

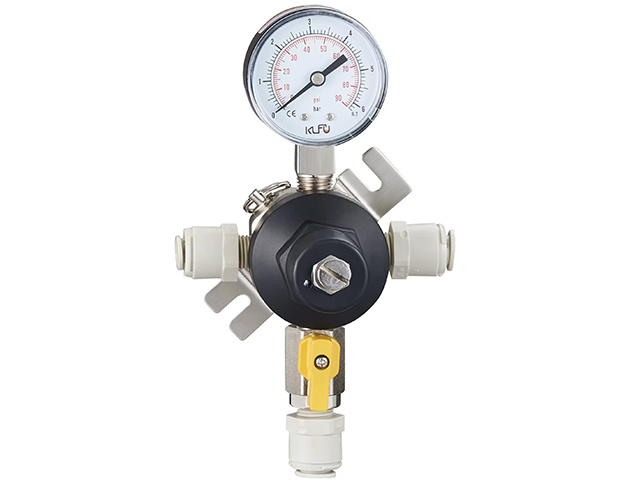

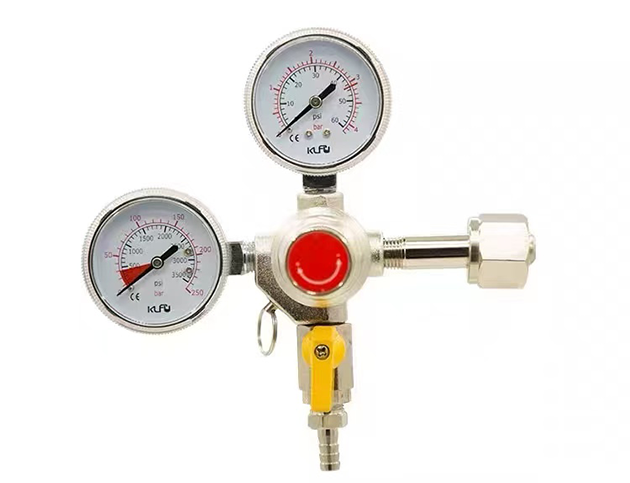

Regulator
The faucet is mainly a switch used for pouring wine: a faucet with reasonable design structure and good quality plays a certain role in controlling the foam. It can be customized according to customer requirements.
Description
SAFETY PRESSURE RELIEF： Safety pressure relief is built in for a stable output. When pressure exceeds the designated pressure level it will automatically relieve pressure from the device. COMPRESSION DIAL： Compression dial is built with a high strength PC material to ensure safety is accidentally dropped. Pressure display will accurately display without any "Jitter".
DESIGN： The design of the screw elimates the possibility of pop- out during use.
Specification Parameters
|
PART NO. |
Outlet Pressure Range |
Inlet Pressure Range |
Gas Barb |
SHANK |
|
1077128 |
0~70 PSI |
0-1500 PSI |
ф8 |
G5/8 |
|
1077154 |
0~70 PSI |
0-1500 PSI |
/ |
CGA320 |
Packaging Information
|
PART NO. |
N.W/UNIT (KG) |
UNIT DIMENSION |
G.W/UNIT (KG) |
PCS/CTN |
BOX DIMENSION |
G.W/BOX (KG) |
|
1011401-20 |
0.34 |
13CM L10CM W6.5CM H |
0.40 |
18 |
31.5CM L28.5CM X21.5CM H |
8.00 |
|
1011401-22 |
0.34 |
13CM L10CM W6.5CM H |
0.40 |
18 |
31.5CM L28.5CM X21.5CM H |
8.00 |
